SDG-3220 4K Pattern Generator
Support up to H.264@30P, HEVC@30P, 10-bit, 4:2:0; 12-bit, 4:2:2, HEVC@50/60P mode supported for SDG-3220Pro; Support HDMI 1.4 video & audio output , HDMI2.0 with HDCP2.2 for SDG-3220Pro.
Download：
Overview
SDG-3220 series is the low cost and high performance 4K UHD Pattern Generator. It is designed to generate multiple 4K Test Patterns for UHD TV. The system can also play out 4K UHD Movies through HDMI output port. The user friendly software interface ease the operation of multiple functions.
SDG-3220 provide ideal Video & Audio signal source for: UHD TV receiver Design,
Features
Ø Low cost and high performance
Ø Support up to H.264@30P, HEVC@30P, 10-bit, 4:2:0
Ø 12-bit, 4:2:2, HEVC@50/60P mode supported for SDG-3220Pro

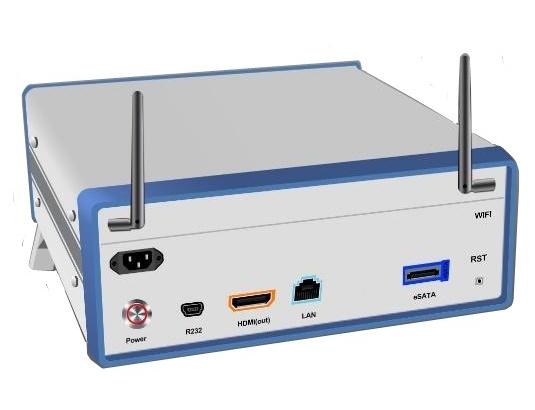

Ø Support HDMI 1.4 video & audio output , HDMI2.0 with HDCP2.2 for SDG-3220Pro
Ø WiFi access as an option: 802.11a/g/b/n
Ø Remote control through RS232 interface
Ø Friendly software GUI & OSD
Ø 4K UHD Movie file play-out without reducing the resolution
Ø Maximum resolution supported 3840 x 2160 (4Kx2K)
Ø Built in SSD 128G & 4K UHD Test Pattern (Color Bar /1K Tone, Ramp, Burst…..)
Ø Flexibility to import file

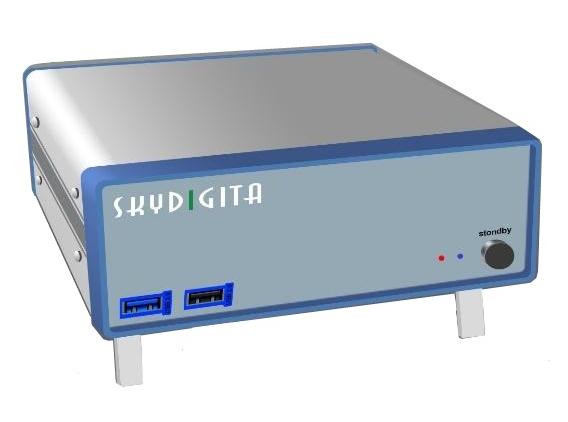

Ø USB3.0 x1, USB2.0 x1
Ø 3D TV supported and compliant to H.264 MVC standard
Ø DLNA compliant
Ø Extra eSATA interfaces for SDG-3220Pro
Specification
|
Digital A/V Output |
HDMI 1.4 1-CH |
|
HDMI 2.0 1-CH ( * for SDG-3220Pro ) | |
|
File Play-out |
Built in 4K Test Pattern / Audio Test Function |
|
4K UHD Movie, pre-loaded or imported from external disk/drive | |
|
Real Time Decoding |
GigE IP stream input, UDP/RTP/RTSP/HLS |
|
Control |
Infrared Remote Control, RS232 command line |
|
HD / 4K Resolution adjustable |
720P50,720P60 1080P24,1080P25 1080P30,1080P50,1080P60 4KP24,4KP25,4KP30 4KP50/60( * for SDG-3220Pro ) |
|
File Storage Space |
SSD 128 GB |
|
Wired Network Connection |
1000Mbps RJ-45 Connector |
|
|
1x USB3.0, 1x USB2.0 |
|
WiFi |
Dual band 2x2 MIMO 802.11 abgn( * option for Pro ) |
|
Power |
100~240VAC 50/60Hz |
|
HDMI Insert and Draw Life Cycle |
>30000 |
4K UHD Test Pattern Samples
|
Item |
Photo |
Description |
|
Color Bar |
|
100% Color Bars With small moving element Audio: 1Khz Tone |
|
SMPTE Color Bar |
|
SMPTE Color Bars With small moving element Audio : AC3 1Khz Tone |
|
Ire Bar |
|
Ire Bar With small moving element Audio : AC3 Auto test |
|
256 Gray Scale |
|
256 Gray Scale With small moving element Audio : AC3 Scale |
|
Black Level |
|
Black Level |
|
Crosshatch |
|
White cross hatch on a black background |
|
Multi Burst |
|
Multi Burst |
|
Black&White |
|
Black&White |
|
100% Blue |
|
100% Blue |
|
100% Red |
|
100% Red |
|
100% Green |
|
100% Green |
|
RGB_64 Step |
|
RGB_64 Step |
|
Up / Down Gray 64 Step |
|
Up / Down Gray 64 Step |
|
TV Test Pattern 1 |
|
Color Bar / Multi Burst / Gray Scale |
|
TV Test Pattern 2 |
|
Color Bar / Multi Burst / Grid and circle /Gray Scale With small moving element Audio: 1K Hz(L)+ 400Hz(R) |
