SDG-3200 4K UHD Pattern Generator
Low cost and high performance; Max. stream rate 500Mbps to achieve true 4K(3840x2160) resolution; HDMI V1.4 compliant; EDID supported; Multiple patterns for TV testing; Perfect for QC.
Download：
- SDG-3200 4K UHD Pattern Generator460.65 KB
Overview

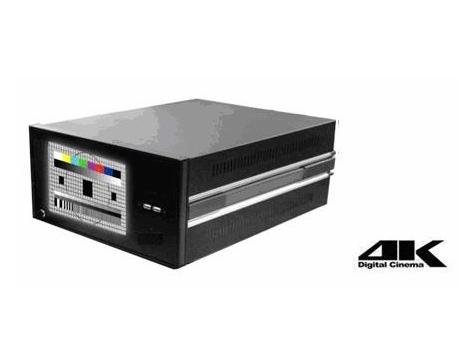

SDG-3200 is a low cost and high performance 4K UHD Pattern Generator.The 4K Pattern Generator is designed to play ideal 4K Test Patterns for the UHDTV. This system can output 4K UHD stream through various HDMI 1.4 port.

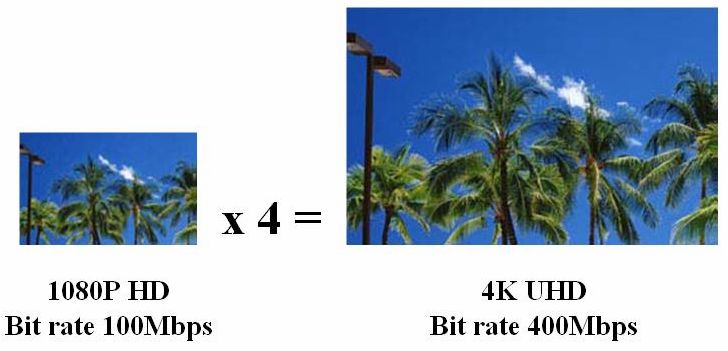

With the maximum rate of 500Mbps without reducing the resolution (3840x2160 ; 4K ), It features friendly interface for software and network remote control. New 4K UHD Streams can be loaded via USB to provide Video & Audio signal for: UHD TV receiver Design, UHD Broadcasting system , LCD TV /LED TV / PDP /DTV Module Manufacturing and QC Verification .
Features
l Low cost and high performance
l Support HDMI 1.4 output of video & audio signals
l Easy Maintenance and Management
l Support EDID Function
l Touch screen control
l Friendly software GUI & OSD
l Compatible with 4K UHD stream files at various rate, up to max. 500Mbps to keep the original resolution
l Support highest 3840 x 2160 (4K) resolution
l Support Video Up-scaling (720P/1080i/1080P/4K)
l Built in SSD 128G & 4K UHD Test Pattern (Color Bar/1K Tone, Ramp, Burst…)
Specification
|
Digital A/V Output |
HDMI 1.4 |
|
|
DVI Dual Link / |
||
|
Source File |
MPEG2 TS , WMV HD , AVC HD , H.264 |
|
|
4K UHD Stream ( Max 500Mbps) |
||
|
File Update |
USB |
|
|
Control |
Keyboard / Touch screen |
|
|
HD / 4K Resolution |
720P50,720P60 1080i60,1080P24,1080P25 1080P30,1080P50,1080P60 4KP24,4KP25,4KP30 |
|
|
File Storage Space |
SSD 128 GB |
|
|
LAN |
10/100Mbps RJ-45 Connector |
|
|
Power |
100~240VAC 50/60Hz |
|
|
|
>3000 times insert and plug out |
4K UHD Test Pattern Sample
|
Item |
Photo |
Description |
|
Color Bar |
|
100% Color Bars With small moving element Audio: 1Khz Tone |
|
SMPTE Color Bar |
|
SMPTE Color Bars With small moving element Audio : AC3 1Khz Tone |
|
Ire Bar |
|
Ire Bar With small moving element Audio : AC3 Auto test |
|
256 Gray Scale |
|
256 Gray Scale With small moving element Audio : AC3 Scale |
|
Black Level |
|
Black Level |
|
Crosshatch |
|
White cross hatch on a black background |
|
Multi Burst |
|
Multi Burst |
|
Black&White |
|
Black&White |
|
100% Blue |
|
100% Blue |
|
100% Red |
|
100% Red |
|
100% Green |
|
100% Green |
|
RGB_64 Step |
|
RGB_64 Step |
|
Up / Down Gray 64 Step |
|
Up / Down Gray 64 Step |
|
TV Test Pattern 1 |
|
Color Bar / Multi Burst / Gray Scale |
|
TV Test Pattern 2 |
|
Color Bar / Multi Burst / Grid and circle /Gray Scale With small moving element Audio: 1K Hz(L)+ 400Hz(R) |

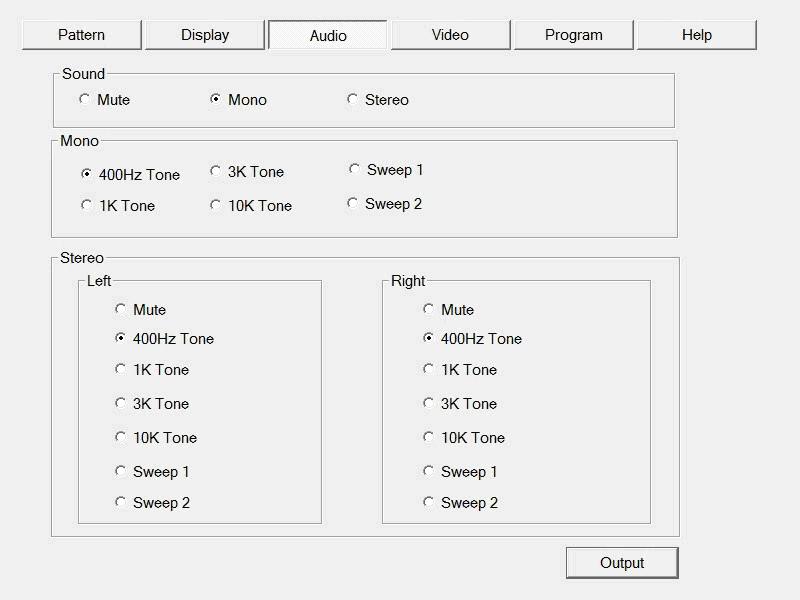

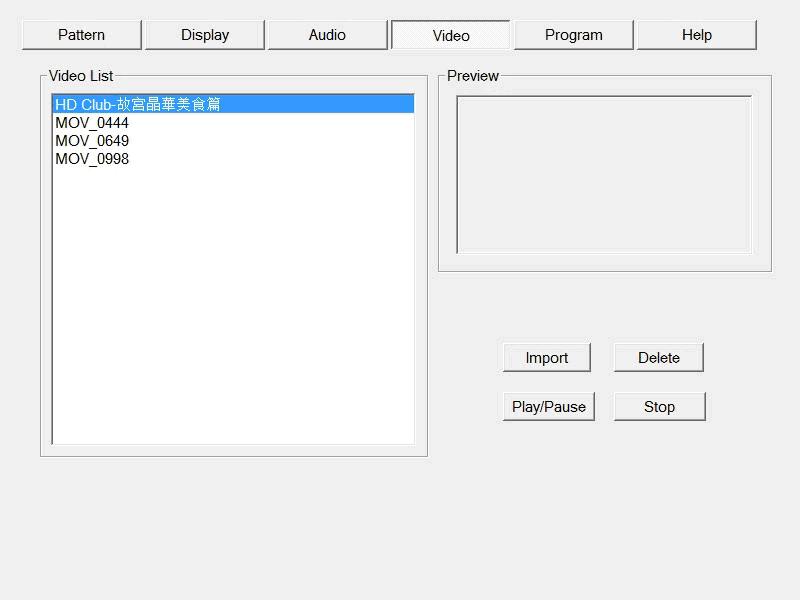

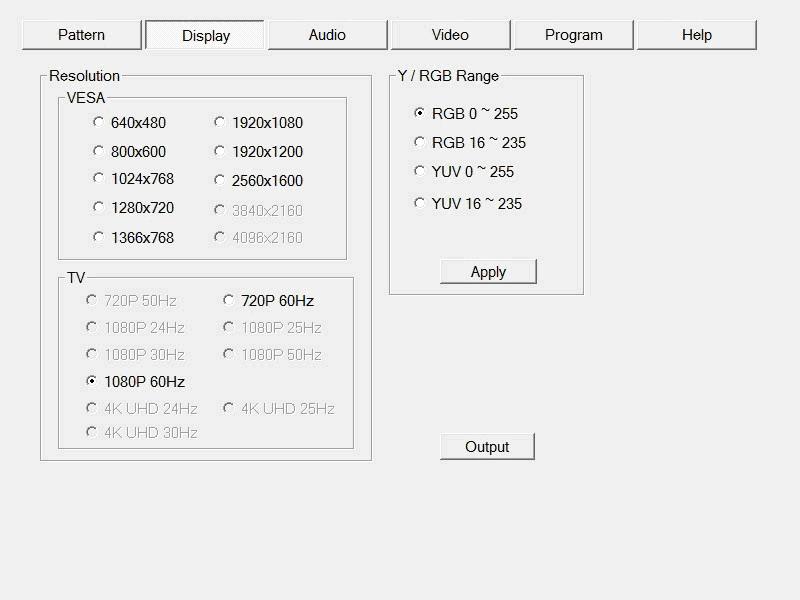

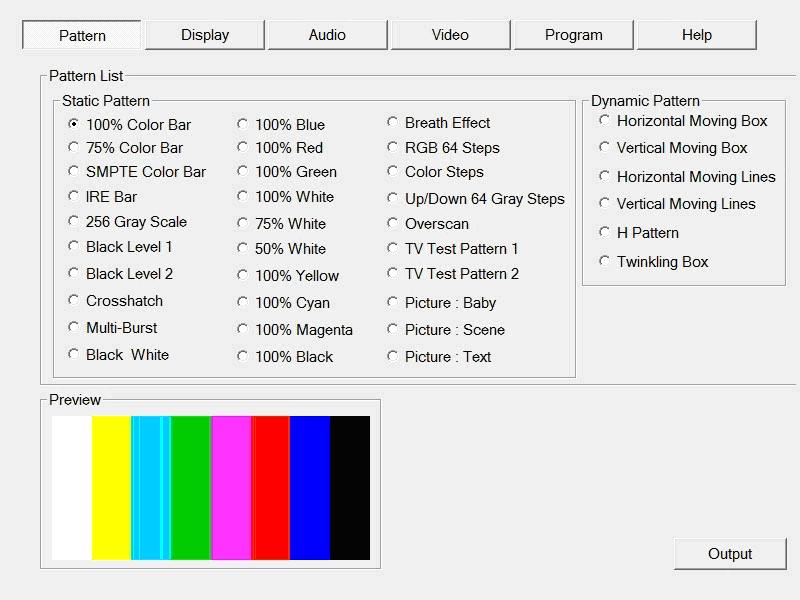

UI
4K UHD Movie Sample
* All specifications are subject to change without notice.
