SDG-3100 4K UHD Stream Player
Supported 4K(3840x2160)stream bit rate as high as 200Mbps; HDMI V1.4 Compliant; Customized UI with RF remote controller; Perfect Ultra High Definition 4K video quality.
Download：
- SDG-3100 4K UHD Stream Player410.2 KB
Features
l 2nd generation based on single chip platform and Linux, resulting in more stable and powerful system
l Max. stream bit rate as high as 200Mbps, with average stream bit rate at 100Mbps, true 4K high quality video helps to position TV product at high end
l Customized user interface(UI) to ease promotion operation in the shop, customer company logo is branded in a professional way
l Output through HDMI V1.4 compliant port, with optional 8-port 4K HDMI splitter to save cost
l Customized UI allow user to switch between different modes via 2.4Ghz RF remote controller
l Embedded Linux OS prevent most miss-operations in PC and keep it safer from virus
l Flexible software upgrading to save cost for future features support in the 4K market
l Compact size while maintain good heat dissipation thanks to the all Aluminium case
l Easy to update stream files inside embedded hard disk via USB3.0 port
l Directly play out file from USB drive
.jpg)
Hardware Specification
|
No. |
Item |
Description |
|
1 |
CPU |
Single 4K chipset |
|
2 |
RAM |
DDR3 1G-1600 |
|
3 |
Solid State Disk |
High speed SSD 32GB |
|
4 |
CASE |
Dust proof industrial high quality all Aluminium case,size: 66x216x280 (mm) |
|
5 |
Power |
AC or DC Adaptor: 100~240VAC,30Watt |
|
6 |
RF Remote Controller |
2.4GHz RF Remote Controller |
|
7 |
USB Port |
1xUSB3.0, 2xUSB2.0 |
|
8 |
Splitter |
Optional 8-port HDMI splitter embedded |
|
9 |
Warranty |
All hardware under 1-year warranty |
Video/Audio Format supported
Video
AVC H.264 MP/HP@L4(Max. 3840x2160@30P, with data rate 200Mbps);
VC-1/SP MP@HLSP@ML AP@L3；
MPEG-4 SP@L3 ASP@L5(1080P);
MPEG-2 MP@HL(Max. 3840x2160 with data rate 200Mbps)
AVC H.264 MP/HP@L4(Max. 3840x2160@30P, with data rate 200Mbps);
VC-1/SP MP@HLSP@ML AP@L3；
MPEG-4 SP@L3 ASP@L5(1080P);
MPEG-2 MP@HL(Max. 3840x2160 with data rate 200Mbps)
Audio
MPEG 2 Audio Layers 2 :16、22.05、24、32、44.1、48kHz；
MPEG-2 AAC: 8、11.025、12、16、22.05、24、32、44.1、48kHz;
MPEG 2 Audio Layers 2 :16、22.05、24、32、44.1、48kHz；
MPEG-2 AAC: 8、11.025、12、16、22.05、24、32、44.1、48kHz;
Pictures
RF Remote Controller

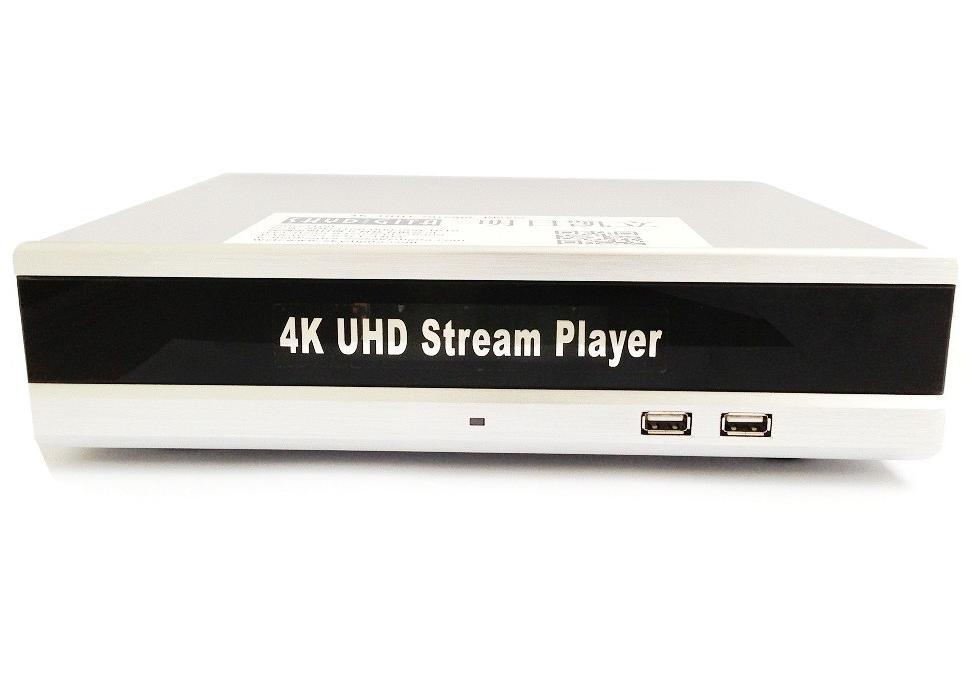

Machine(Silver color)
Rear Panel
*All specifications are subject to change without notice
