StreamGrabber TS Recorder/Player
Looped and Scheduled Recording, PID filtering, Remote Control through SNMP, Multi-input:ASI,TSoIP,RF
Download：
- StreamGrabber TS RecorderPlayer330.13 KB
Features
l Recording of MPEG-2 transport streams or SDI signals
l Support multiple I/O ports: ASI(x1,x2,x4,x8,x16)
l Support TSoIP stream and real time RF signal recording

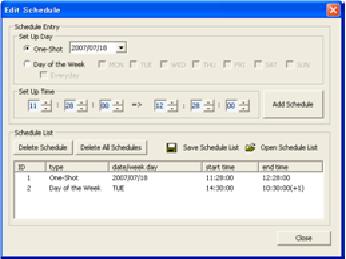

l Scheduled recording
l Multi-file functions:
Ø Erase files older than X hours
Ø Maximum number of files
Ø Time stamp/index in file name
l Remote monitoring and control through SNMP
l Select PIDs to record, with range support, positive/negative filtering
l Record into single or multiple files
l Advanced looped recording of the last X
l SDI recording:8 or 10 bits, full frame or video only, Huffman compression on/off
l Limit record-file size based on:
Ø Maximum duration, (e.g. record 60 sec)
Ø Maximum size,(e.g. record 10GB)
Ø Record until stopped
l Disk space monitoring

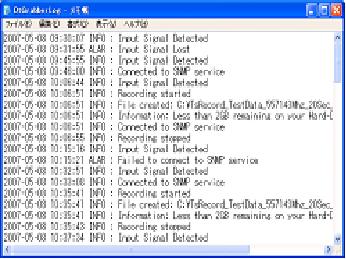

l Application message log and SNMP traps
l Merge tool for combining several files
l RF input option: DVB-T/T2/C/S/S2,ATSC
l TSoIP: UDP or RTP
l Options: Stream file play back through ASI, TSoIP, RF modulation – DVB,ATSC,ISDB
Applications
l General capturing tool
l Advanced recorder solution
l Archiving broadcast streams
 | |
 |
 |
 |
 |
Specifications
|
Parameter |
Value | |
|
DVB ASI |
Connector |
BNC，75Ω |
|
Return Loss |
≥15dB(5~270Mhz) | |
|
Rx/Tx Rate |
0 ~ 214Mbps | |
|
Max. no. of Ports |
16, I/O direction configurable | |
|
GigE
(IP Stream) |
Physical |
IEEE802.3ab |
|
Connector |
RJ-45,10/100/ | |
|
TS Rate Max. |
600Mbps | |
|
Protocol |
UDP,RTP | |
|
TSoIP & FEC |
SMPTE-2022 | |
|
TS File |
.ts,.trp,.mpg MPEG-2 transport stream files compliant to IEC 13818-1 | |
|
RF |
DVB-T/T2 |
In: 75Ω F connector x2 |
|
Freq:50~860Mhz | ||
|
Bandwidth: 6,7,8Mhz | ||
|
Support SPLP & MPLP (T2) | ||
|
DVB-S/S2 |
In: 75Ω F connector x2 | |
|
Freq: 950~2150Mhz | ||
|
Symbol Rate: 1~45Msps | ||
|
DVB-C
(QAM-A/B/C) |
In: 75Ω F connector x2 | |
|
Freq:47~862Mhz | ||
|
Symbol Rate: 5~7.1Msps | ||

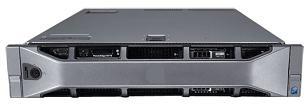

Electrical and Mechanical
|
General |
CPU: Intel Xeon E5630x2
RAM:
HDD: SAS 4.7TB hot swappable |
|
Power Supply |
AC: 570W，100V~240V AC; |
|
Size (2U) |
86.4x 443.1x |
|
Weight |
|
|
temprature |
0~
-20 ~ |
|
Humidy |
5~90%@ |
Ordering Information
|
Model |
Description |
|
SSG-x |
Basic stream recorder with no.of x ASI/SDI ports |
|
SSG-I-x |
SSG-x plus TSoIP stream recording |
|
SSG-R-x |
SSG-x plus RF signal recording |
