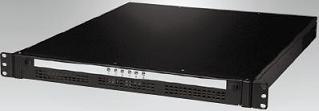

SkyMG-1000 Gateway

SkyMG slim 1U/2U height rack mountable, 8/16xASI input max.,2xGigE,real time ASI<->IP conversion with embedded de-multiplex

Download:

Features



l Slim 1U height rack mount
l 8/16xASI input max.,2xGigE port for output
l Max. 214Mbit/s per ASI port
l Independent ASI input module and IP output module
l Flexible configuration between ASI-IP and IP-ASI
l Support UDP or RTP in unicast and multicast mode
    Ø Convert full transport stream to IP
    Ø De-multiplex MPTS stream and generate SPTS, user can choose to output single or multiple programs
            inside a TS
l Auto control IP out at constant rate
l Automatic adjustment on PCR and Continuity Counter
l PID filtering and replacement
l Flexible Transport Packet number in an IP packet, support TP size: 188/204/auto
l Remote control via SNMP,IGMP-V3
l User friendly interface: configuration,device and stream status, event log and statistic information
l Standard 19" rack mountable
l Optional features:
    Ø TR101-290 monitoring,stream analysis,PCR diagnosis,TV playout
    Ø RF(DVB-S/S2,DVB-T/C) to IP conversion
    Ø Common interface for scrambled programs(DVB-CI)

2U height version available: Max. 16xASI input, 2xGigaE





Specifications



Parameter
Value
GigE Port
Physical Layer
IEEE802.3af
Data rate
10/100/1000M
Connector
RJ-45
DVB-ASI port
Physical Layer
DVB-ASI,Coxial
Connector
2x BNC,75 ohm
Tx bitrate
0~214Mbit/s
Accuracy
<1bit/s
Transport
TP per IP
1,2,3,4,5,6 or 7
Encapsulation
UDP or RTP
FEC
SMPTE 2022
DVB-ASI -TsoIP latency
10ms(max.)
Jitter tolerance range
1..120ms





Electrical and Mechanical



Power
250W, AC 100V~240V
Size
480(W) x 449H) x 497(D) mm
Weight
8Kg





Environment


peration temprature
0 ~ 40°C
Storage temprature
-20 ~ 60°C
Humidy
10~85%@40°C





Related Product


SkyMG-1002
SkyMG 16-channel media gateway





Ordering Information



SkyMG-1001
SkyMG 8-channel media gateway
