BarnMini small box family

BarnMini-1 : 2x BNC , 1x SFP ; BarnMini-2 : 2x SFP

Download:

In addition to our BarnOne family lf 1RU solutions we have under development a small family of BarnMini boxes that can be seen as a one channel extension out in the field. In good Barnfind spirit we will of course offer our solutions with more functions to a lower price than competition.

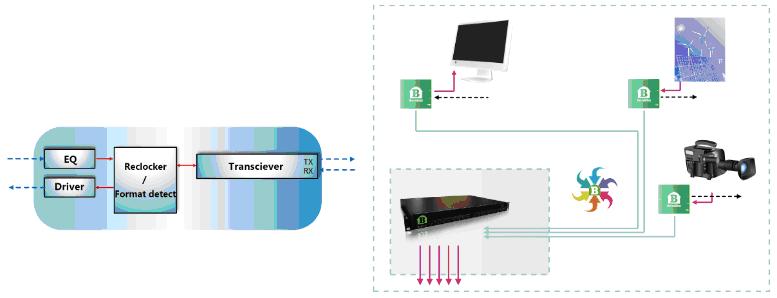

The first version of our small box family is BarnMini-1. This unit has 2 x BNC in one side for TX and RX and 1 x SFP any kind in the other end. You can choose any SFP for different data rate and reach. Any SFP for the BarnOne series will fit into our BarnMini series. If you on the SFP side use our transceivers you can take the signal back to check if optical budget is present. We start deliveries of the BarnMini-1 from end of October.Please ask for price and stock availability.

The second version of our small box family is BarnMini-2 that has 1 x SFP in each end. It will else perform like the BarnMini-1. We espect deleveries in late November.

With the introduction of this new BarnMini family you now have a complete range of devices that can woke together with the unique BarnOne family. No competitor gives you more flexibility. The BarnMini family will have the same generous warranty as the BarnOne family.




Technical Specifications


Optical port

Ø Fiberoptical port(SFP) , Duplex transceiver , LC/PC connectros
Ø SMPTE 259M , 292M , 372M , 424M , 297M , DVB-ASI
Ø Hot pluggable/swappable
Ø Singlemode or Multimode
Ø 16 CWDM wavelength selections  –  ITU-T G.694.2


Electrical ports

Ø BNC RX and TX
Ø 75 OHM BNC connectors
Ø SMPTE 259M , 292M , 372M , 424M , DVB-ASI
Ø Multirate reclocking of outputs 270Mbit/s - 3Gbit/s
Ø Automatic cable EQ (Belden 1694A) 270Mbit/s - 250m , 1.5Gbit/s - 140m , 3Gbit/s - 80m


Power supply

Ø 12V DC 120W. Power supply included
