Control Software BarnStudio and Accessories
BarnStudio gives you a quick and easy control setting, an overview of the input and output ports, re-clocking configurations, alarms, full matrix control, cable compensation on the input side, auto SFP detection etc.
Download：
Control
General about the control options
The Barnfind philosophy is to make the control predictable, reliable and easy to understand.
Our BarnStudio software comes included in the BarnOne frame price. BarnStudio gives you a quick and easy control setting, an overview of the input and output ports, re-clocking configurations, alarms, full matrix control, cable compensation on the input side, auto SFP detection etc.
BarnStudio reads the needed information about every port. In particular the SFP’s are monitored in a separate list with among others temperature, signal strengths, signal loss, manufacturer, serial number, wave length, connector type etc. With Barnfind you are in control of your own solution.
Easy to deal with SNMP/MIB file (IPv4/IPv6). Please ask the Barnfind team if you want to have our SNMP/MIB file in order to do your own software. This is of course free of charge
Barnfind Control Features
Main Control Interface:
Ø Ethernet with IPv4 and IPv6
Ø SNMP
Ø Self-upgrade via Internet. Control software runs on top of GNU/Linux Operating System
Ø IPv4/IPv6 configuration – discovery and configuration via multicast. Makes it possible to always reach the device on a local network.
Ø Future Option: HTTP/Web, Telnet/Text
Ø SNMP
Ø Self-upgrade via Internet. Control software runs on top of GNU/Linux Operating System
Ø IPv4/IPv6 configuration – discovery and configuration via multicast. Makes it possible to always reach the device on a local network.
Ø Future Option: HTTP/Web, Telnet/Text
SNMP Interface:
Ø Detection of “loss of signal” on all Inputs
Ø Reclocker configuration and status on all Outputs
Ø Equalizer configuration and status were available on Inputs and Outputs
Ø Mux configuration
Ø Fan status
Ø SFP diagnostics
Ø Raw access to SFP configuration flash (I2C interface) and status
Ø Simplified configuration to SFP which is in our dynamic database (Barnfind will grow this list as we discover different modules/demand from our customers)
Ø Future Options: Automatic Redundancy on signal paths
Ø Reclocker configuration and status on all Outputs
Ø Equalizer configuration and status were available on Inputs and Outputs
Ø Mux configuration
Ø Fan status
Ø SFP diagnostics
Ø Raw access to SFP configuration flash (I2C interface) and status
Ø Simplified configuration to SFP which is in our dynamic database (Barnfind will grow this list as we discover different modules/demand from our customers)
Ø Future Options: Automatic Redundancy on signal paths
Base software on PC:
Ø Discovery and configuration on network interfaces on Barnfind equipment
Ø Be able to configure all options on the device
Ø Presets (salvo)
Ø Future Options: App on IOS (Apple), Android and Windows RT (Windows Mobile 8)
Ø Be able to configure all options on the device
Ø Presets (salvo)
Ø Future Options: App on IOS (Apple), Android and Windows RT (Windows Mobile 8)
Advanced Software (future):
Ø Trend Logging
Ø Map view (World Map, Local Map, Rack Map)
Ø Linking Ports in Map, detecting mismatch in Light-Colors, Signal Configuration
Ø Redudancy (across devices)
Ø Support for 3rd party devices – PLEASE ASK FOR AVAILABILITY
Ø Map view (World Map, Local Map, Rack Map)
Ø Linking Ports in Map, detecting mismatch in Light-Colors, Signal Configuration
Ø Redudancy (across devices)
Ø Support for 3rd party devices – PLEASE ASK FOR AVAILABILITY
3rd party control e.g. Skyline
BarnStudio
Matrix view

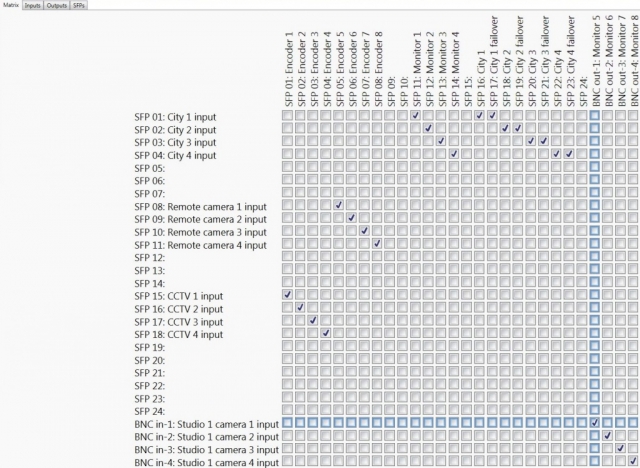

BarnStudio lets you easily perform with one-clicks to switch sources for any given destinations you want regardless of electrical or optical inputs or outputs. You can also make an extract of the ports you would like to operate with in order to get a better overview
Input view

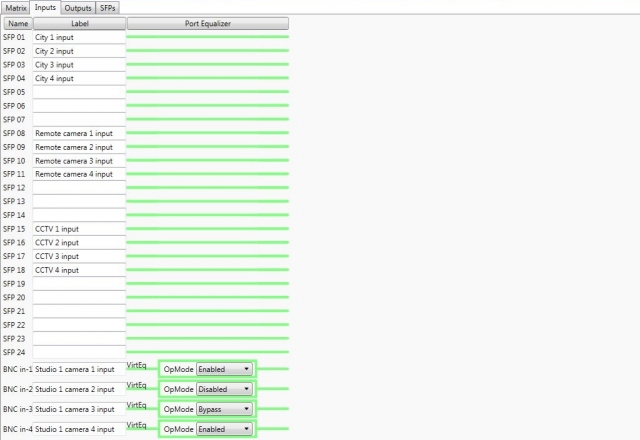

On the input page you have a chance to configure the equalization per port on the BNCs. Since the BNCs are bidirectional, you can choose the direction of these ports. In this view, you can also rename all of your input ports.
Network

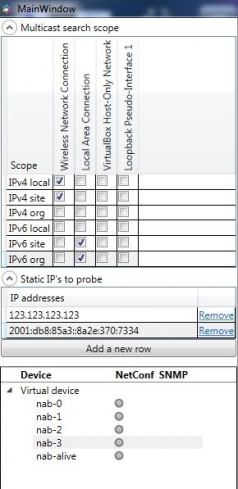

On the left part inside BarnStudio you can configure where to search for devices. BarnStudio has support for both IPv4 and IPv6. All Barnfind frames in the system will be displayed here to give you a total overview.
Output view

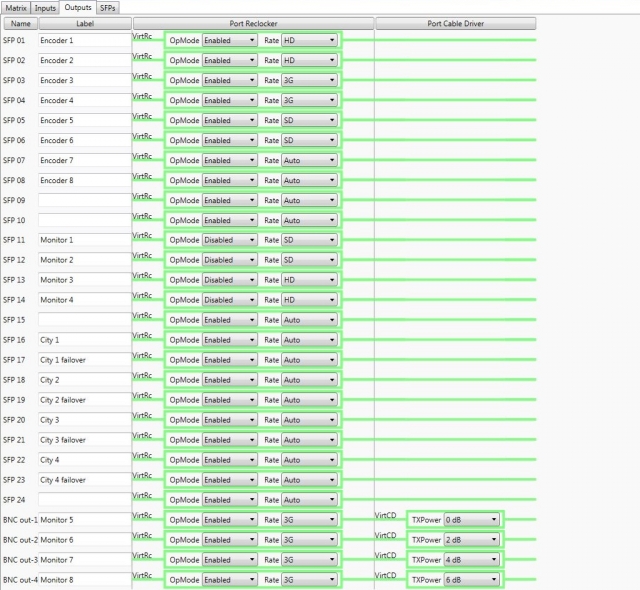

On the output view you have a chance to configure re-clocking per port on both electrical and optical ports. You can Enable or Disable the re-clocking function per port. And you can choose between common used Data rates such as SDI, HD-SDI and 3G or put it on Auto. Since the BNCs are bidirectional, you can choose the direction of these ports. In this view, you can also rename all of your output ports
SFP view

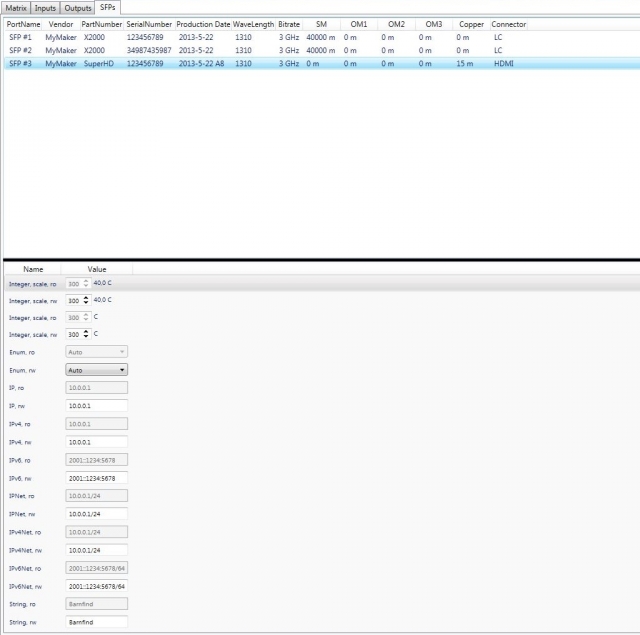

In this view you can see all our SFPs listed and see information like: manufacturer, model number, serial number, production date. You can also click on every SFP to get detailed information and/or configure this specific SFP like temperatures, transmission power, receiving power, or configure the target IP-address if this is a smart SFP that can send video over IP/Ethernet.
Accessories
|
Product |
Description |
Remark |
|
BT-PSU-12 |
Redundant powersupply |
|
|
BT-PSU-48 |
On request |
|
|
BT-FAN-04 |
Replaceble cooling fan cassette |
|
|
BU-ATT-LC-XX |
Attenuator for LC connectors |
Specify dB form 1 to 30 |
|
BT-PATCH-LC-XX |
Fiber patch cable LC-LC Duplex |
Any other length can be ordered |
|
Fault locator |
Visual fault locator optical tester |
10 m W / 30 m W |
|
JW |
Portable optical power meter |
|
|
BarnClean |
Fiber optical connector cleaner |
|
|
BarnClean refill |
Refill cassette for BarnClean |
|
