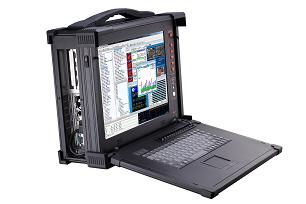

StreamXplorer Portable Analyzer
Portable stream and RF signal analyzer for MPEG-2& H.264; Multi-Standard HD/SD; Multi-input format
Download：
- StreamXplorer Portable Analyzer586.41 KB
Features
l Multiple input supported: IP(TSoIP),ASI, RF, file, SDI
l Real time analysis, monitoring and recording of streams
l Provide detailed statics on PIDs, Services, Tables in TS
l User definable TR101 290 templates
l PCR Analysis
l PID grid: compact overview of all PIDs
l Integrated decoder: MPEG-2/H.264, AC3, VC-1 (optional)
l Deep decoding of PSI,DVB-SI,DVB-RCS, ATSC-PSIP tables and descriptors
l Support DVB-RCS tables & descriptors: SCT, FCT, SPT, CMT, TBTP, RMT
l Custom descriptors & tables decoding via XML file template
l Enhanced analysis including(optional):
Ø Teletext, Subtitle decoding, EPG viewer
Ø Private data,object/Data Carousels analysis(DSM-CC)
Ø Raw packet data display in HEX byte
Ø GoP, PTS-DTS timing, buffer behavior
Ø Thumb overview
Ø 3D side-by-side/Bottom-and-top support
Ø Audio viewer(Samples, Equalizer Bars, Frequency Spectrum, Spectrograph and Goniometer Viewer)
Ø IP Traffic Viewer
l ES Analyzer &Video Quality Measurements(Optional):
Ø In-depth analysis of off-line MPEG-1/2,H.264/AVC video steams
Ø All coding parameters analysis: from headers down to Micro-block layer
Ø Automated video quality analysis and content verification with hot-folder support and HTML Quality Report output
Ø Graphs with quality level of MPEG/H.264 video and indication of MPEG artifacts
Ø Video Quality Analysis: Subject video quality is rated by MOS ranging from 1(bad) to 5(Excellent)
Ø Bit rate, spatial and temporal complexity measurements
Ø Parameters: Header Data, Coding type, Macroblock Quantiser, DCT Coefficients, Motion Vectors, Bit Allocation, Slice Structure, Picture Frequency, MOS Measurements, Automated Quality
Other Optional Features
l RF input compliant to: DVB-S/S2, DVB-T/T2, DVB-C/C2, ATSC/QAM-B/C
Ø RF level, MER,BER measurement
Ø RF spectrum view(ATSC/QAM only)
Ø Constellation
l SDI Analyzer and Recording
Ø Real time waveform analyzer for SMPTE-259M signals
Ø Display picture, YCbCr/RGB waveforms, Vector Scope and peak meter
l TS-over-IP stream advanced analysis
Ø MDI(Media Delivery Index) measurements: DF(Delay Factor) and MLR(Media Loss Rate)
Ø IP Packet Loss, Jitter and Latency
Ø RTP packet measurement and monitoring
Applications
l Truly portable MPEG-2 Stream Analyzer
l Professional Lab tool for real-time IP stream, ASI and SDI analysis
l Stream recording in the field
l Stream files(TS,SDI) analysis
 |
 |
|
Stream Analyzer:

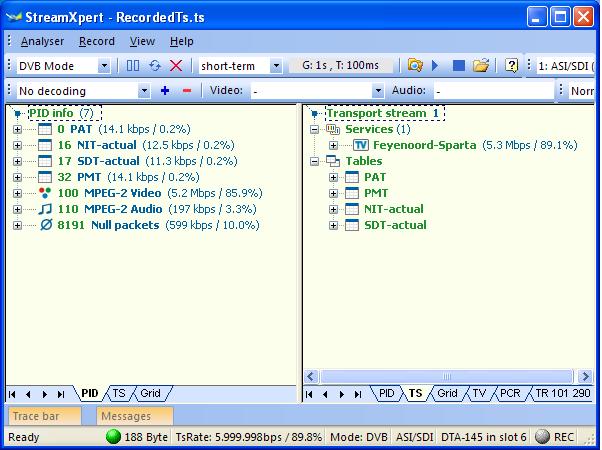

TR101 290 Compliance Check |

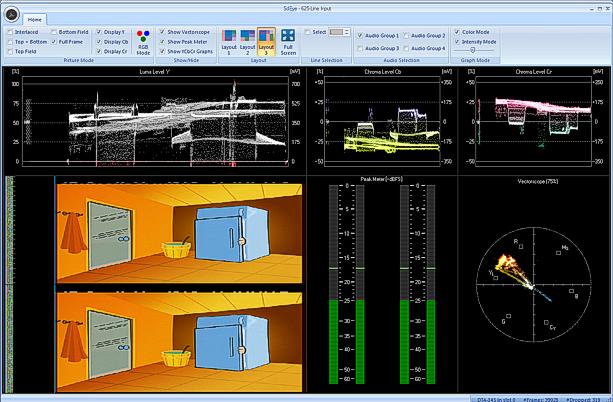

SDI Waveform and Vector Scope |
 |
|

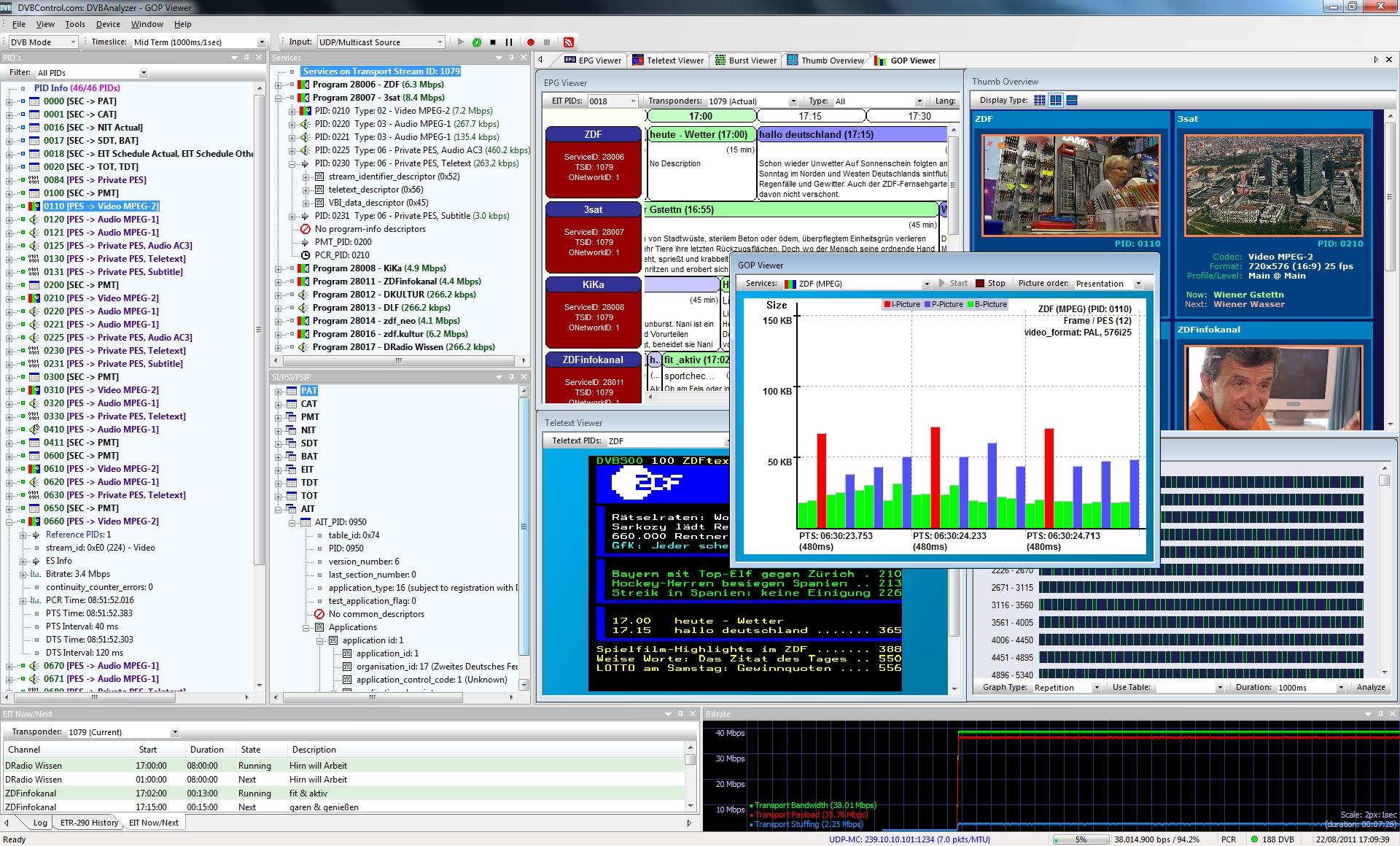

Enhanced Stream Analyzer: EPG viewer, GoP viewer, Thumb overview,Teletext |
 |
 |
|
Elementary Stream Analysis:

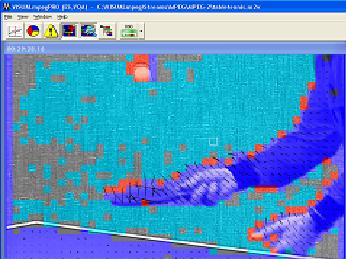

Detailed MPEG-2/H.264 coding parameters
shown in a visual way |

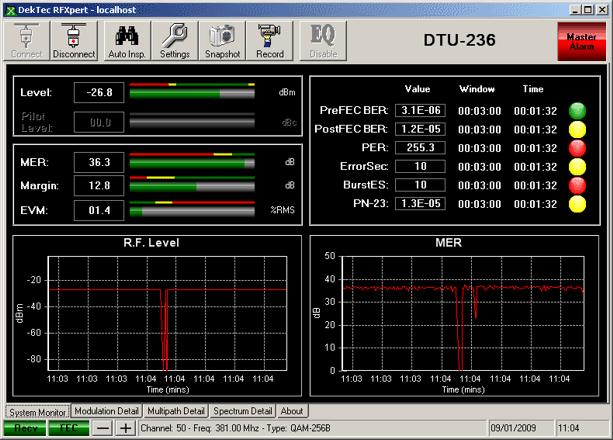

RF signal level, MER, BER, and Spectrum view |
Specifications
|
H/W Interface Parameter |
Value | |
|
DVB ASI |
Connector |
BNC，75Ω |
|
Return Loss |
≥15dB(5~270Mhz) | |
|
Rx/Tx Rate |
0 ~ 214Mbps | |
|
Max. no. of Ports |
8, I/O direction configurable | |
|
GigE
(IP Stream) |
Physical |
IEEE802.3ab |
|
Connector |
RJ-45,10/100/1000M | |
|
TS Rate Max. |
600Mbps | |
|
Protocol |
UDP,RTP | |
|
TSoIP & FEC |
SMPTE-2022 | |
|
TS File |
.ts,.trp,.mpg MPEG-2 transport stream files compliant to IEC 13818-1 | |
|
RF |
DVB-T/T2 |
In: 75Ω F connector x2 |
|
Freq:50~860Mhz | ||
|
Bandwidth: 6,7,8Mhz | ||
|
Support SPLP & MPLP (T2) | ||
|
DVB-S/S2 |
In: 75Ω F connector x2 | |
|
Freq: 950~2150Mhz | ||
|
Symbol Rate: 1~45Msps | ||
|
DVB-C
(QAM-A/B/C) |
In: 75Ω F connector x2 | |
|
Freq:47~862Mhz | ||
|
Symbol Rate: 5~7.1Msps | ||
Standards
|
ATSC VSB |
ATSC A53/E |
|
DVB-T/DVB-H |
EN300 744 |
|
DVB-C |
EN300 429, J.83 Annex A |
|
US QAM/QAM-C |
J.83 Annex B/C |
|
DVB-T2 |
EN 302 755 |
|
DVB-S/S2 |
EN 302 307 |
Electrical and Mechanical
|
General |
CPU: Intel Core 2 Duo T7300 2.0G
RAM: 4G DDRIII
HDD: 250G 2.5” SATA(500G optional)
RS232x2, GigEx1, USBx4 VGAx1, DVIx1 |
|
Power Supply |
AC Adaptor: 200W，100V~240V AC;
DC: 19V, ATX output 90W |
|
|
110Whr,16.8V 6600mAH |
|
Size |
425x338x156 mm（HxWxD） |
|
Weight |
11KG(with Battery), 10KG(Without |
|
LCD Screen |
15”,1024x768, TFT LCD.
Touch panel(Optional),17” LCD (optional) |
|
temprature |
0~40°C(operation) -20~40°C(optional,operation)
-20 ~ 60°C(Storage) |
|
Humidy |
5~90%@40°C,non-frozen |
Ordering Information
|
Model |
Description |
|
SSE-x |
Basic stream analyzer with no.of x ASI ports, including IP stream and file analysis |
|
SSE-E-x |
SSE-x plus enhanced analysis option |
|
SSE-Q-x |
SSE-x plus ES&video quality analysis option |
|
SSE-R-x |
SSE-x plus RF input option |
|
SSE-D-x |
SSE-x plus SDI analyzer option |
|
SSE-I-x |
SSE-x plus TSoIP enhanced analysis option |
* Note: Multi-options can be ordered together, but limited to hardware limitation.
