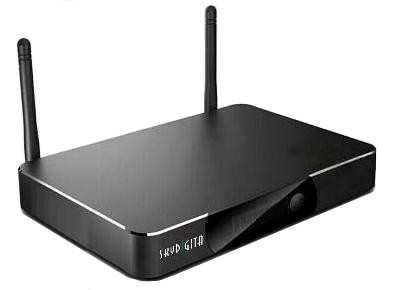

SDB-300 4K UHD OTT Box
Ultra High Definition supported: Max. 3840x2160@50/60P; HDMI2.0 with HDCP 2.2; Color sampling rate upto 4:2:2, 10bit; HEVC (H.265) decoding supported
Download：
Overview
SDB-300 series is SkyDigita high end 4K UHD Over-the-Top box at affordable price. With Ethernet IP input it presents the amazing variety of contents from internet to TV screen. It embeds the latest 802.11ac wireless module and make it easy to watch fluent video via WiFi access to internet. Customer can also playback the pre-loaded file from embedded disk, or watch their favorite video through disk drive attached to external USB ports.
Features
l Ultra High Definition supported: Max. 3840x2160@50/60P
l HDMI2.0 with HDCP 2.2
l Color sampling rate upto 4:2:2, 10bit
l HEVC (H.265) decoding supported
l WiFi: Dual band 2x2 MIMO 802.11ac/abgn, better reception and higher speed
l Third party application supported like Netflix, Wyplay
l 2.4Ghz RF remote controller, or Blue Tooth remote controller, as an option
l 3D TV supported and compliant to H.264 MVC standard
l DLNA compliant
l HDMI2.0 with HDCP 2.2
l Color sampling rate upto 4:2:2, 10bit
l HEVC (H.265) decoding supported
l WiFi: Dual band 2x2 MIMO 802.11ac/abgn, better reception and higher speed
l Third party application supported like Netflix, Wyplay
l 2.4Ghz RF remote controller, or Blue Tooth remote controller, as an option
l 3D TV supported and compliant to H.264 MVC standard
l DLNA compliant
Specification
|
Operating System |
Linux |
|
SoC and CPU |
ARM Cortex A9 Dual Core SMP 7000 DMIPS |
|
GPU |
Advanced 2D&3D OpenGL ES2.0 engine, capable in 3D TV application |
|
HEVC Processing |
HEVC 10-bit 4:2:2 4K@60P UHD decoding, main and main 10 |
|
System Memory |
DDR3-1600 4G, Flash 8G, Nor Flash 16M |
|
Storage(Internal & External) |
Optional Embedded SSD Disk with different size External disk drive via USB port |
|
Video Processing & Output |
HDMI 2.0 with HDCP 2.2, Half Resolution, MVC 3D TV, full HD 1080P24 3D TV, support for Top-bottom, Side –by-Side, frame packing formats, 3D Comb/Temporal filter |
|
Audio Processing & Output |
HDMI 2.0 with HDCP 2.2, 16/20/24-bit samples at 32/44.1/48/96/192Khz sampling rate |
|
AC Adapter |
100~240VAC 50/60Hz |
|
USB Interface |
1xUSB3.0, 1xUSB2.0, 3rd USB2.0 port available if not used for BT or RF Remote Controller |
|
Network Connection |
Wired: 10/100/1000Mbps RJ-45 Connector Wireless: IEEE 802.11ac/abgn, 2x2 MIMO, Dual Band, data rate upto 867Mbps for 802.11ac 80Mhz bandwidth mode (theoretically) |
|
Video Decoder |
Real time decoding of upto 4xHD 1080i or 2x1080P60 AVC/SMPTE 421M/MPEG-2 video streams; Real time decoding of 1xHD 1080P ‘internet video’: VP8, RV 8/9/10, DivX/XviD/MPEG-4 part 2 ASP, AVS, H.263, MJPEG formats |
|
Audio Formats |
Decoding 1x or 2x audio formats: MPEG1 L1/L2, MP3, AAC, HE-AAC, MS11, Dolby Digital Plus & True HD, DTS&DTS-HD, LPCM, MLP, WMA, G.7xx, AVS Audio, Vorbis, Multi-CH volume leveling |
|
Image Formats |
BMP, JPG, GIF, JPEG, PNG |
|
Security |
Encryption/Decryption(AES/DES/PBDA/AACS), RSA/OTP, smart card, DVB CSA 1/2/3 decryption, embedded non-volatile memory, Unique 64-bit ID, Hardware true random number generator, HDCP 2.2 DRM |
|
Remote Control |
IR, or 2.4GHz RF/BT Remote Controller |
|
Operation Temperature |
0~40 °C, or 32~104 °F |
|
Certification |
CE, FCC, Rosh, |
|
Feature List to be added |
G16Ability to run third party applications like Netflix, WyPlay Media Protocol: HLS, RTP, RTSP, UDP Network Transmission: Unicast, Multicast, Broadcast Network Protocol: DLNA, Samba, WiDi, Miracast Remote on-line Upgrade(OTA) |
