BarnOne Application Example2

The CCTV System

Download:

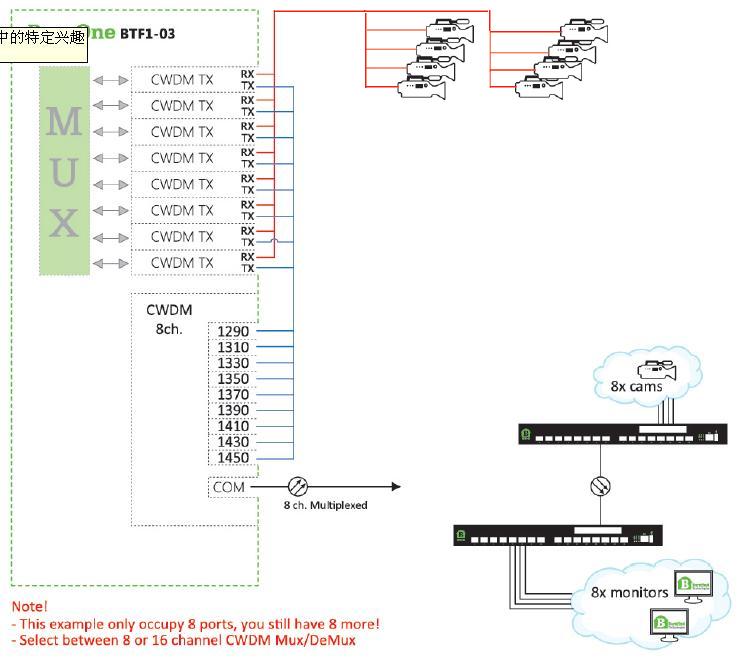

This example shows a typical surveillance application. The cameras are using fiber to transmit, but coaxial is possible either by changing SFP modules or by using BarnOne BTF1-07.

The complete videostream are multiplexed to one fiber and transmitted to receivers end, less than 80 km away. All inputs and outputs are interconnected to a full-matrix crosspoint swith for full control and flexibility. All outputs are reclocked

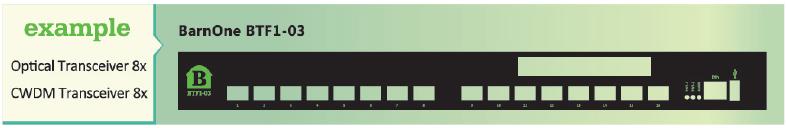

Component list used in this example:
