BarnOne Application Example1

Pass System

Download:

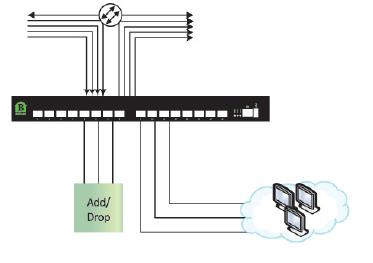

This application example is a typical use when operating with various signal formats and standards. By selecting SFP modules with required datarate, format and transmission media (copper or fiber), the BarnOne will replace your converters. All the input and output signals are interconnected with a full-matrix crosspoint switch that gives you full control and flexibility. All outputs are reclocked.

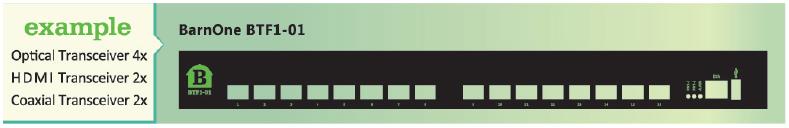

Component list used in this example:
