CWDM/DWDM Modules and Mux/Demux

CWDM(Coarse Wavelength Division Multiplexer)Modules Mux/Demux;DWDM(Dense Wavelength Division Multiplexer)Modules Mux/Demux

Download:

More About CWDM



Barnfind CWDM Mux/Demux is a passive technology, it allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. HD over fiber at 1570nm transported alongside 3Gbps SDI at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.

Barnfind CWDM Mux/Demux can support up to 18 wavelengths between 1270nm to 1610nm in 20nm increments when com fiber is ITU-T G.694.2 , however if com fiber is ITU-T G.652, we recommend adopt 1270nm and 1290nm instead of 1390nm and 1410nm because of water peak loss.

Barnfind provides a complete portfolio of CWDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications.CWDM Mux/Demux is a flexible, low-cost solution that enables the expansion of existing fiber capacity.The CWDM Mux/Demux lets operators make full use of available fiber bandwidth in local loop and enterprise architectures.

Barnfind CWDM Mux/Demux is a universal device capable of combining up to 18 optical signals into a fiber pair or single fiber. It is designed to support a broad range of architectures, ranging from scalable point-to-point links to two fiber-protected rings





CWDM Mux & Demux spesifications

Ø 8/16 optical channels
Ø Center wavelengths according to ITU-T G.694.2
Ø Channel center wavelength 1290~1590 nm
Ø Channel clear passband ITU +/- 7 nm
Ø Insertion loss 8ch-2.5dBm, 16ch-3.5dBm (max)
Ø Passband ripple 0.5dBm (max)
Ø Adjacent channel isolation 30dBm (min)
Ø Non-adjacent channel isolation 45dBm (min)
Ø Return loss 45dBm (min)
Ø Directivity 45dBm (min)
Ø Polarization dependent loss 0.1dBm (max)
Ø Operating temperature range -20C to +70C (optional -40C to +85C)
Ø Storage temperature handling – 40 to + 85C
Ø Maximum power handling 300mW
An important advantage of CWDM solution is the cost of the optics which is typically 1/3rd of the cost of the equiv.





CWDM Modules



SFP

Data Rate

Distence

BTSFP-CWDM-40-01XX

BTSFP-CWDM-80-01XX

155Mbps

40km

80km

BTSFP-CWDM-40-02XX

BTSFP-CWDM-80-02XX

1.25Gbps

40km

80km

BTSFP-CWDM-40-03XX

BTSFP-CWDM-80-03XX

2.5Mbps

40km

80km

BTSFP-CWDM-10-3GXX

3Gbps

10km

BTSFP-CWDM-40-3GXX

3Mbps

40km

 * All CWDM modules mentioned in the list are transceivers

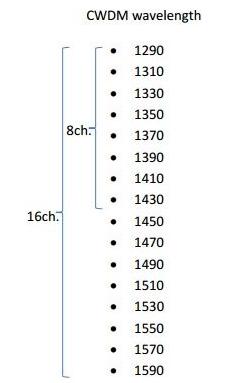

CWDM ITU grid G.694.2



Product Name

Wavelength

BTSFP-CWDM-40-0329

1290nm

BTSFP-CWDM-40-0331

1310nm

BTSFP-CWDM-40-0333

1330nm

BTSFP-CWDM-40-0335

1350nm

BTSFP-CWDM-40-0337

1370nm

BTSFP-CWDM-40-0339

1390nm

BTSFP-CWDM-40-0341

1410nm

BTSFP-CWDM-40-0343

1430nm

BTSFP-CWDM-40-0345

1450nm

BTSFP-CWDM-40-0347

1470nm

BTSFP-CWDM-40-0349

1490nm

BTSFP-CWDM-40-0351

1510nm

BTSFP-CWDM-40-0353

1530nm

BTSFP-CWDM-40-0355

1550nm

BTSFP-CWDM-40-0357

1570nm

BTSFP-CWDM-40-0359

1590nm







DWDM Modules



SFP

Data Rate

Distance

Compatible

BTSFP- XX80DCR

1.25Gbps

80km

1000 Base Ethernet

BTSFP- XXA2DCR

1.25Gbps

120km

BTSFP- XX80DCR

2.5Gbps

80km

OC-48, STM-16

BTSFP- XXA2DCR

2.5Gbps

120km

 * Wavelength selectable to C-band and L-band ITU-T grid wavelengths







DWDM Mux/Demux in separate 1RU frames



Frame

Channels

BT-DWDM-MUX-16-1RU

16 channels in 1RU

BT-DWDM-MUX-32-1RU

32 channels in 1RU

* Up to 88 ch. possible (2RU), please ask!
