General about the SFP’s



The Barnfind philosophy is to offer a future proof platform that saves customers space and money. Our BarnOne concept accepts any SFP (Small Form Factor Pluggable) because you never know what tomorrow brings! Any of today’s SFP will fit into the system, and we are prepared also for those that do not exist yet. Barnfind has the Barn for it. All SFP’s are installed in SFP cages in our Barns that are capable of handling signals up to 10Gbps.

All known and unknown SFP manufacturer are welcome to house their SFP solutions in our Barns. If you would like to build your own SFP we can house it in our BarnOne and integrate it with our total solutions for the global market.

Please tell us if you don’t see the SFP you are looking for as only a small initial selection of SFP possibilities are listed.

Please ask for other versions and SFP brands.

Whether our own SFP’s or 3rd parties SFP’s our BarnStudio reads the needed information about port number, temperature, signal strengths, signal loss, manufacturer, serial number, wave length, connector type, and displays this in a separate list for optimal control of your Barnfind solution. Most competitors have proprietary pin layout and/or software restrictions/limitations on their SFP’s which tend to be extremely expensive. And it can be frustrating to wait on spare parts or expansions. You will soon discover with Barnfind you have your spare part in your pocket. BarnOne’s maintenance cost are extremely affordable.

Think of BarnOne as the Motor highway and all the different SFP’s as cars. By working with Barnfind you can drive different and new SFPs on our Motor Highway for incomparable flexibility. No other competitor offers this flexibility.

Although any SFP will fit into our unique Barn’s, we can only offer up to 5 years warranty on our own SFP’s.

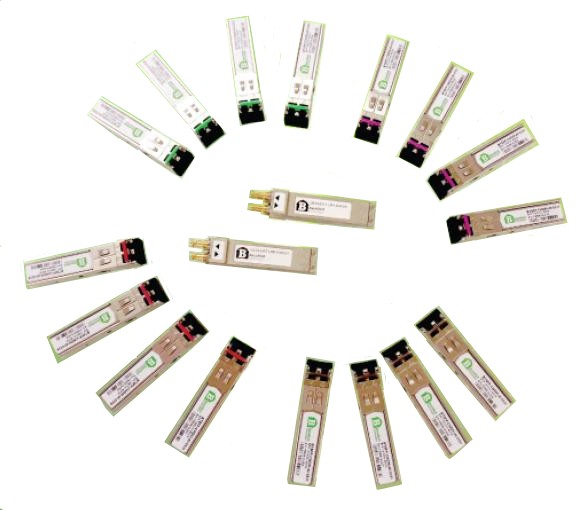

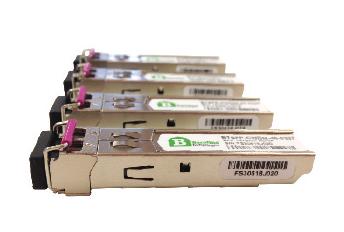

Transceiver Modules



SFP

Data Rate

Distance

nm

Compatible

BTSFP-SX-MM-0102

155Mbps

2km

1310nm

OC-3/STM-1,1/100Base- Fast Ethernet

BTSFP-LX-SM-0120

155Mbps

20km

1310nm

BTSFP-LX-SM-0140

155Mbps

40km

1310nm

BTSFP-ZX-SM-0180

155Mbps

80km

1550nm

BTSFP-LX-SM-0620

622Mbps

20km

1310nm

SONET OC-12, SDH STM-4/ATM

BTSFP-LX-SM-0640

622Mbps

40km

1310nm

BTSFP-ZX-SM-0680

622Mbps

80km

1550nm

BTSFP-LX-SM-0220

1.25Gbps

20km

1310nm

1000Base Ethernet

BTSFP-LX-SM-0240

1.25Gbps

40km

1310nm

BTSFP-ZX-SM-0280

1.25Gbps

80km

1550nm

BTSFP-ZX-SM-02120

1.25Gbps

120km

1550nm

BTSFP-LX-SM-0310

2.5Gbps

10km

1310nm

OC-48, STM-16

BTSFP-LX-SM-0315

2.5Gbps

15km

1310nm

BTSFP-LX-SM-0340

2.5Gbps

40km

1310nm

BTSFP-ZX-SM-0380

2.5Gbps

80km

1550nm

BTSFP-ZX-SM-03120

2.5Gbps

120km

1550nm

BTSFP-LX-SM-3G03

3Gbps

3km

1310nm

SDI,HD-SDI and 3G-SDI

BTSFP-LX-SM-3G10

3Gbps

10km

1310nm

BTSFP-ZX-SM-3G10

3Gbps

10km

1550nm

BTSFP-ZX-SM-3G40

3Gbps

40km

1550nm





BiDi Modules



SFP

Data Rate

Distance

nm

BTSFP-WDM-SM-0120A

BTSFP-WDM-SM-0120B

155Mbps

20km

T1550/R1310nm

T1310/R1550nm

BTSFP-WDM-SM-0140A

BTSFP-WDM-SM-0140B

155Mbps

40km

T1550/R1310nm

T1310/R1550nm

BTSFP-WDM-SM-0160A

BTSFP-WDM-SM-0160B

155Mbps

60km

T1550/R1310nm

T1310/R1550nm

BTSFP-WDM-SM-0180A

BTSFP-WDM-SM-0180B

155Mbps

80km

T1550/R1310nm

T1310/R1550nm

BTSFP-WDM-SM-0220A

BTSFP-WDM-SM-0220B

1.25Gbps

20km

T1550/R1310nm

T1310/R1550nm

BTSFP-WDM-SM-0240A

BTSFP-WDM-SM-0240B

1.25Gbps

40km

T1550/R1310nm

T1310/R1550nm

BTSFP-WDM-SM-0280A

BTSFP-WDM-SM-0280B

1.25Gbps

80km

T1550/R1490nm

T1490/R1550nm

BTSFP-WDM-SM-02120A

BTSFP-WDM-SM-02120B

1.25Gbps

120km

T1550/R1490nm

T1490/R1550nm

BTSFP-WDM-SM-0310A

BTSFP-WDM-SM-0310B

1.25Gbps

10km

T1550/R1310nm

T1310/R1550nm

BTSFP-WDM-SM-0340A

BTSFP-WDM-SM-0340B

2.5Gbps

40km

T1550/R1310nm

T1310/R1550nm

BTSFP-WDM-SM-0380A

BTSFP-WDM-SM-0380B

2.5Gbps

80km

T1550/R1490nm

T1490/R1550nm
