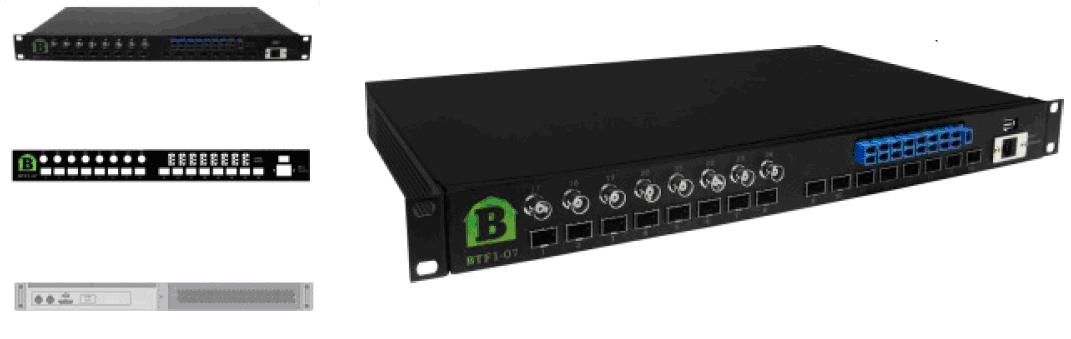

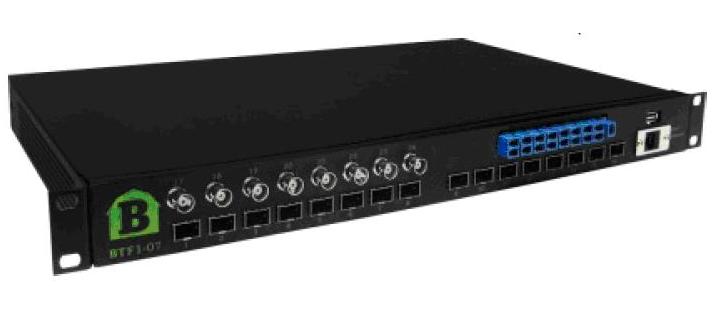

BarnOne BTF1-07

16 SFP, 8 BNC, 8/16 CWDM mux

Download:



 Technical Spesifications



Electrical ports





8x bi-directional BNC ports
75 OHM BNC connector
SMPTE 259M, 292M, 372M, 424M, DVB-ASI
Multirate reclocking of outputs 270Mbit/s – 3Gbit/s
Automatic cable EQ (Belden 1694A) 270Mbit/s-250m, 1.5Gbit/s-140m, 3Gbit/s-80m


Optical ports





16x fiberoptical ports (SFP) , Duplex transcievers , LC/PC connectors
SMPTE 259M, 292M, 372M, 424M, 297M, DVB-ASI
Hot pluggable/swappable
Singlemode and/or Multimode
16 CWDM wavelength selections – ITU-T G.694.2
Multirate reclocking of outputs 270Mbit/s – 3Gbit/s


CWDM Mux &
Demux












8/16 optical channels
Center wavelengths according to ITU-T G.694.2
Channel center wavelength 1290~1590 nm
Channel clear passband ITU +/- 7 nm
Insertion loss 8ch-2.5dBm, 16ch-3.5dBm (max)
Passband ripple 0.5dBm (max)
Adjacent channel isolation 30dBm (min)
Non-adjacent channel isolation 45dBm (min)
Return loss 45dBm (min)
Directivity 45dBm (min)
Polarization dependent loss 0.1dBm (max)
 Operating temperature range -20C to +70C (optional -40C to +85C)
Storage temperature handling – 40 to + 85C
Maximum power handling 300mW


Power supply

12V DC 120W. Power supply included
Redundant power supply optional


Physical size

445mm x 280mm x 43,5mm (17.5” x 11” x 1.7”)
3.8 kg


Model name
BTF1-07


Includes

BTF1-07 frame, powersupply 12V DC, BarnStudio configuration and operation software
