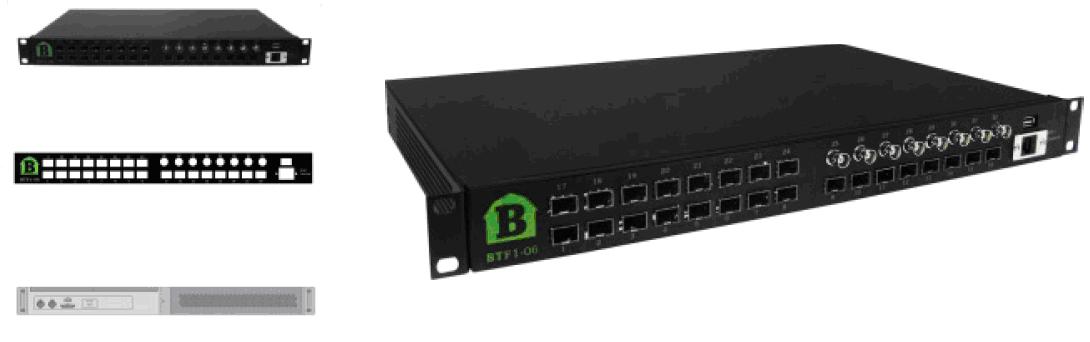

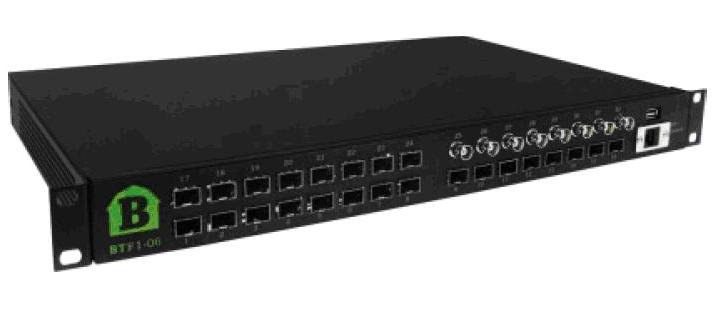

BarnOne BTF1-06
24 SFP, 8 BNC
Download：
Technical Spesifications
|
Electrical ports
|
8x bi-directional BNC ports 75 OHM BNC connector SMPTE 259M, 292M, 372M, 424M, DVB-ASI Multirate reclocking of outputs 270Mbit/s – 3Gbit/s Automatic cable EQ (Belden 1694A) 270Mbit/s-250m, 1.5Gbit/s-140m, 3Gbit/s-80m |
|
|
|
|
Optical ports
|
24x fiberoptical ports (SFP) , Duplex transcievers , LC/PC connectors SMPTE 259M, 292M, 372M, 424M, 297M, DVB-ASI Hot pluggable/swappable Singlemode and/or Multimode 16 CWDM wavelength selections – ITU-T G.694.2 Multirate reclocking of outputs 270Mbit/s – 3Gbit/s |
|
|
|
|
Power supply
|
12V DC 120W. Power supply included Redundant power supply optional |
|
|
|
|
Physical size
|
445mm x 280mm x 43,5mm (17.5” x 11” x 1.7”) 3.8 kg |
|
|
|
|
Model name |
BTF1-06 |
|
|
|
|
Includes
|
BTF1-06 frame, powersupply 12V DC, BarnStudio configuration and operation software |
