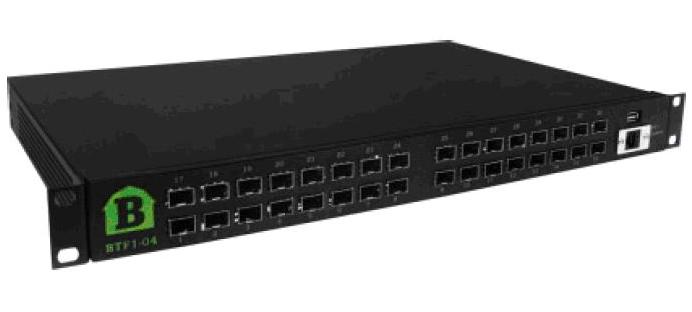

BarnOne BTF1-04

32 SFP

Download:





 Technical Spesifications



Optical ports





32x fiberoptical ports (SFP) , Duplex transcievers , LC/PC connectors
SMPTE 259M, 292M, 372M, 424M, 297M, DVB-ASI
Hot pluggable/swappable
Singlemode and/or Multimode
16 CWDM wavelength selections – ITU-T G.694.2
Multirate reclocking of outputs 270Mbit/s – 3Gbit/s

Power supply

12V DC 120W. Power supply included
Redundant power supply optional

Physical size

445mm x 280mm x 43,5mm (17.5” x 11” x 1.7”)
3.8 kg

Model name
BTF1-04

Includes
BTF1-04 frame, powersupply 12V DC, BarnStudio configuration and operation software
